Magnetic Cable Management for Logging Equipment

Published On: February 17, 2026

Logging Equipment Upfits: A Cleaner Way to Route Small Hydraulic Hoses (Without Fighting Adhesives)

If you build or upfit logging equipment—winch-assist tethers, yarders, and custom forestry machines—you already know the hard part isn’t always the big steel. It’s everything that comes after: routing wires, small hydraulic hoses, fuel lines, and pneumatic tubing on machines that were:

custom-built,
rebuilt from used equipment,
or modified job-by-job, where routing paths weren’t defined from day one.

When the routing isn’t engineered into the build, teams default to “whatever works” in the moment—usually sticky-back zip tie mounts or improvised clamps. And on logging equipment, that’s a rough environment for adhesives: oil, grime, weather, vibration, and temperature swings.

That’s exactly why a lot of upfitters are switching to MagDaddy magnetic tie mounts for routing.

The real-world problem: routing “was not defined” on custom builds

One of our customers summed up logging builds perfectly: when you’re building tethers (winch assist) and yarders—especially from used machines—routing wires and hydraulic hoses often isn’t defined. You’re solving it in real time.

They also mentioned something you’ve probably seen firsthand:

Sticky mounts are getting compromised where oil is present
mounts exposed to the elements
routing that needs to change after a few test fits
different teams touching the same areas (electrical, hydraulic, assembly)

Their fix: move from adhesive mounts to magnets, and then the use expanded fast—from wire routing to small hydraulic hoses, then fuel and pneumatics.

Why magnetic tie mounts fit logging equipment upfits

1) Oil + grime + weather is a bad combo for sticky mounts

Adhesive-backed mounts can be fine in clean, controlled conditions. But logging equipment isn’t that.

Magnetic tie mounts are attractive because they can help you:

Avoid relying on adhesive bond strength in oily zones
Reduce “redo work” when something shifts, or a mount lets go
Keep routing consistent on machines exposed to the elements

2) Upfits change constantly—magnets move with the build

On custom equipment, you’re always adjusting:

clearances
pinch points
hose bend radius
service access
guarding changes

Magnets make it easier to reposition routing points during mock-up and final assembly—without drilling new holes or committing to a permanent clamp location too early.

3) One product, multiple routing jobs (wire → hydraulic → fuel → pneumatic)

A big takeaway from the customer message: once magnets got adopted for wire routing, other teams started using them too.

Common “snowball” use cases on logging machinery:

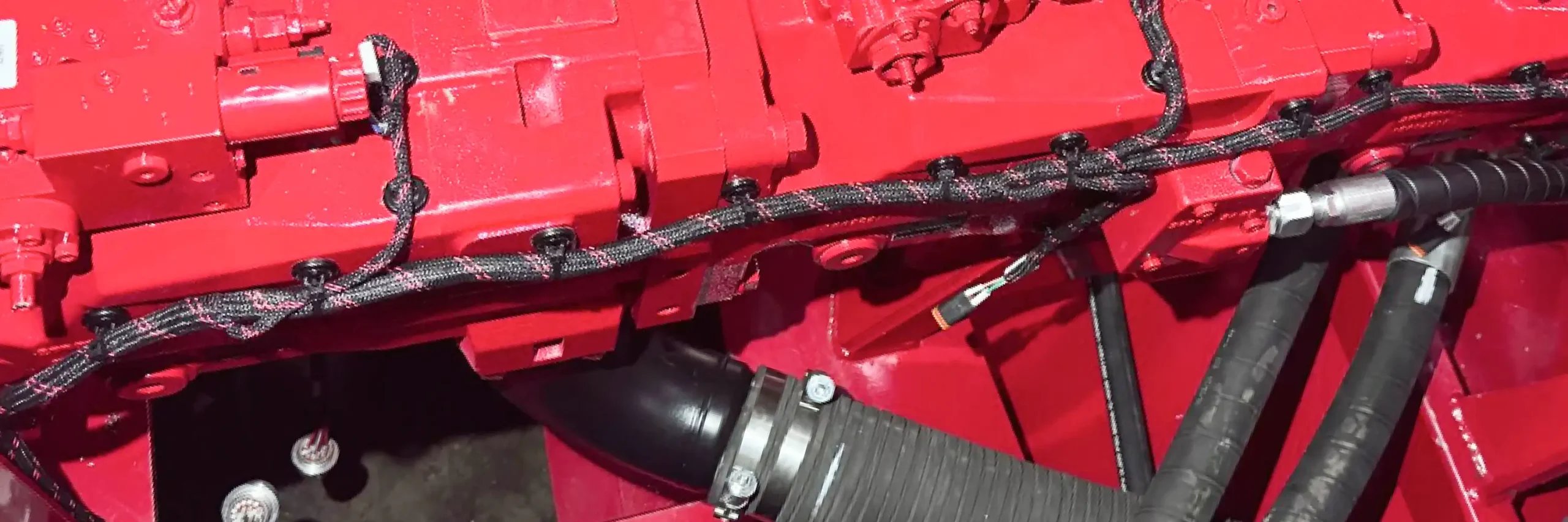

wire harness routing along frames and panels
small hydraulic hoses for control circuits
fuel line routing (where appropriate and safe for your setup)
pneumatic tubing on auxiliary systems

Practical note: always follow your internal routing standards for abrasion protection, heat clearance, and securement intervals—especially for hydraulics and fuel.

Where magnetic tie mounts typically get used on forestry machinery

On machines like tethers (winch-assist) and yarders, magnetic routing mounts are commonly used anywhere you have a steel structure and need flexible routing points, such as:

frame rails and crossmembers
equipment bays / service panels
guarding and access doors (where clearance allows)
control enclosures and brackets
temporary routing during prototype/mock-up

Best practices (so it stays clean and professional)

If you want your installs to look “OEM-quality,” this is the simple playbook:

Plan the path first: avoid sharp edges, heat zones, and moving linkages
Protect the line: use sleeve/loom where there’s abrasion risk
Serviceability matters: route so a tech can access filters, valves, fittings
Bundle smart: separate hydraulic, electrical, and pneumatics where possible
Standardize your pattern: consistent tie spacing looks cleaner and is easier to QC
