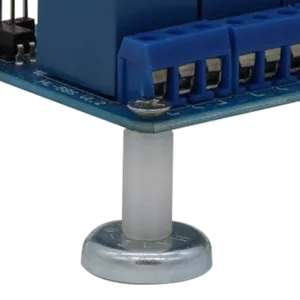

Printed Circuit Board (PCB) Magnetic Standoff Kit: 10lb Magnetic Mount with Bayonet Snap Lock Standoffs
Printed Circuit Board (PCB) Magnetic Standoff Kit: 10lb Magnetic Mount with Bayonet Snap Lock Standoffs
Magnet Mounts

Magnetic Standoff Kit: 10lb Magnetic Mount w/ Bayonet Snap Lock Standoffs

Part # PCBM100

Features:

  • Magnet Strength: Neodymium magnets rated and tested at 10lbs pull strength.
  • Versatile installation: Allows panel builders and technicians to easily add or remove hardware from their installations as well as quick repair access.
  • Cost-effective solution: Eliminates the need for a brand new panel build, easily add to your control panel, and move things around to fit your needs rather than the panel box.

Specifications:

  • 10LB N35M ¾” (19mm) Magnet Mount, .193” (4.9mm) Hole Size.
  • PCB Support – Screw and Lock, HHCBS-12 (.75”) V-0 Natural.
  • 6-32 X 3/8” Phillips Flat Head Screw Thread Cutting, 100° Countersink.

Included in Kit:

  • 12 – Magnetic Mounts
  • 12 – Bayonet Snap Lock Spacer
  • 12 – 6-32 x 3/8” Phillips Flat Head Screws

Technical Documents

10lbs
